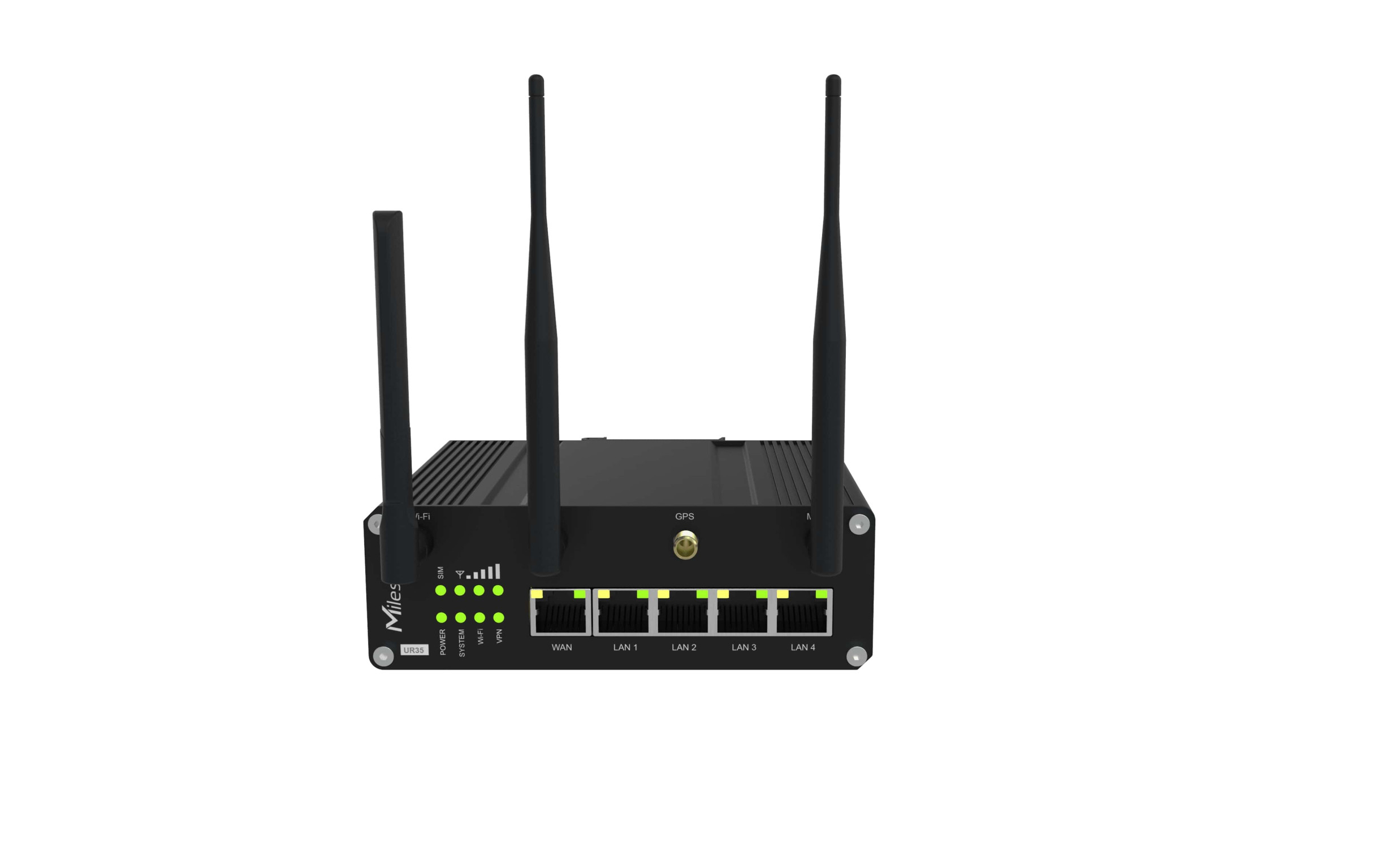

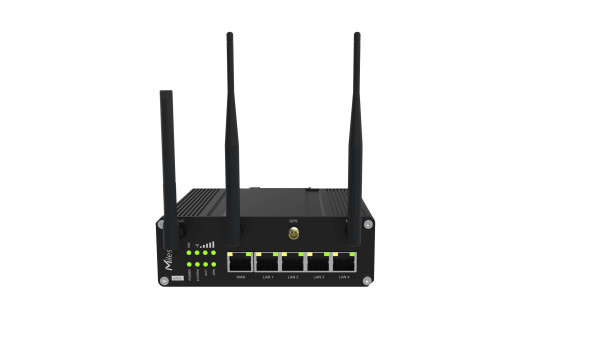

UR35 Compact and Reliable Industrial Grade Cellular/WiFi + GPS Router

UR35 Compact and Reliable Industrial Grade Cellular/WiFi + GPS Router

Compact but Reliable Industrial Grade Router Pro Series UR35

• Industrial Grade Design for Harsh Environment
• Rugged But Exquisite Design
• Embedded Python SDK for Secondary Development
• Ultra-High Protection System
• Rich Interfaces for Multiple Applications
• Stable Cellular, Ethernet and Wi-Fi Transmission
• Open VPN Tunnel and Various Interface
• Remote Management on MilesightVPN and DeviceHub

Enjoy Reliable Cellular Connectivity
With reliable capacity, UR35 brings mission-critical communications for broad applications.

Industrial Grade Design
To fulfill the market demand, UR35 is built with NXP industrial grade processor IP30 rated hardened enclosure, industrial components, and wide operation range from -40°C to 70°C (-40? to +158?) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.

Exquisite Design
With an exquisite design, UR35 is specially designed to bring stable but flexible performance. The compact size allows it to easily fit into small cabinets or machines when space is limited.

Embedded Python SDK
UR35 is scalable for secondary development with Python SDK embedded. It can be extended to be more applicable and customized to truly meet actual demands.

Ultra-Reliable Protection System

• Quick Network Backup
  Automated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi
• Embedded Watchdog
  Embedded with hardware watchdog to automatically recover from various failures
• Security Protection
  Equipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that the network is secured.

Rich Interfaces
Scaling up M2M and IoT applications is made possible by the UR35's rich serial interfaces, which include RS232, RS485, and Digital Input/Output.

Stable Internet Access
Integrating embedded cellular modem and dual SIM function, the UR35 provides a 3G/4G cellular network with reliable download and uplink speed. It also has 4 PoE PSE Ethernet ports and supports Wi-Fi that is complying with 802.11b/g/n standards for uninterrupted internet access.

Industrial Grade Design
To fulfill the market demand, UR35 is built with NXP industrial grade processor IP30 rated hardened enclosure, industrial components, and wide operation range from -40°C to 70°C (-40? to +158?) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.

Open VPN Tunnel and Various Protocols
Featuring with multiple network protocols and VPN tunnels, UR35 provides secure and reliable solutions for a range of M2M/IoT deployments.

• Network Protocols Such as SNMP, Modbus Bridging, RIP, and OSPF
• VPN Tunnels Such as IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN

Remote Management

- MilesightVPN
UR35 supports connection and management with MilesightVPN

• Easy Connection via Authentication Code
• Connection Status Overview
• Remote and Secure Access to Field Devices

- Milesight DeviceHub
Milesight DeviceHub offers a high-efficiency and low-maintenance solution to easily deploy Milesight Industrial Cellular Routers across multiple locations, reducing complexity and increasing productivity.

• Central Management
• Device Status Monitoring
• Remote & Bulk Configuration

Flexible Installation

• Desktop Mount
• Wall Mount
• DIN Rail Mount
