PASSAGE PEOPLE LORAWAN COUNTER

PASSAGE PEOPLE LORAWAN COUNTER

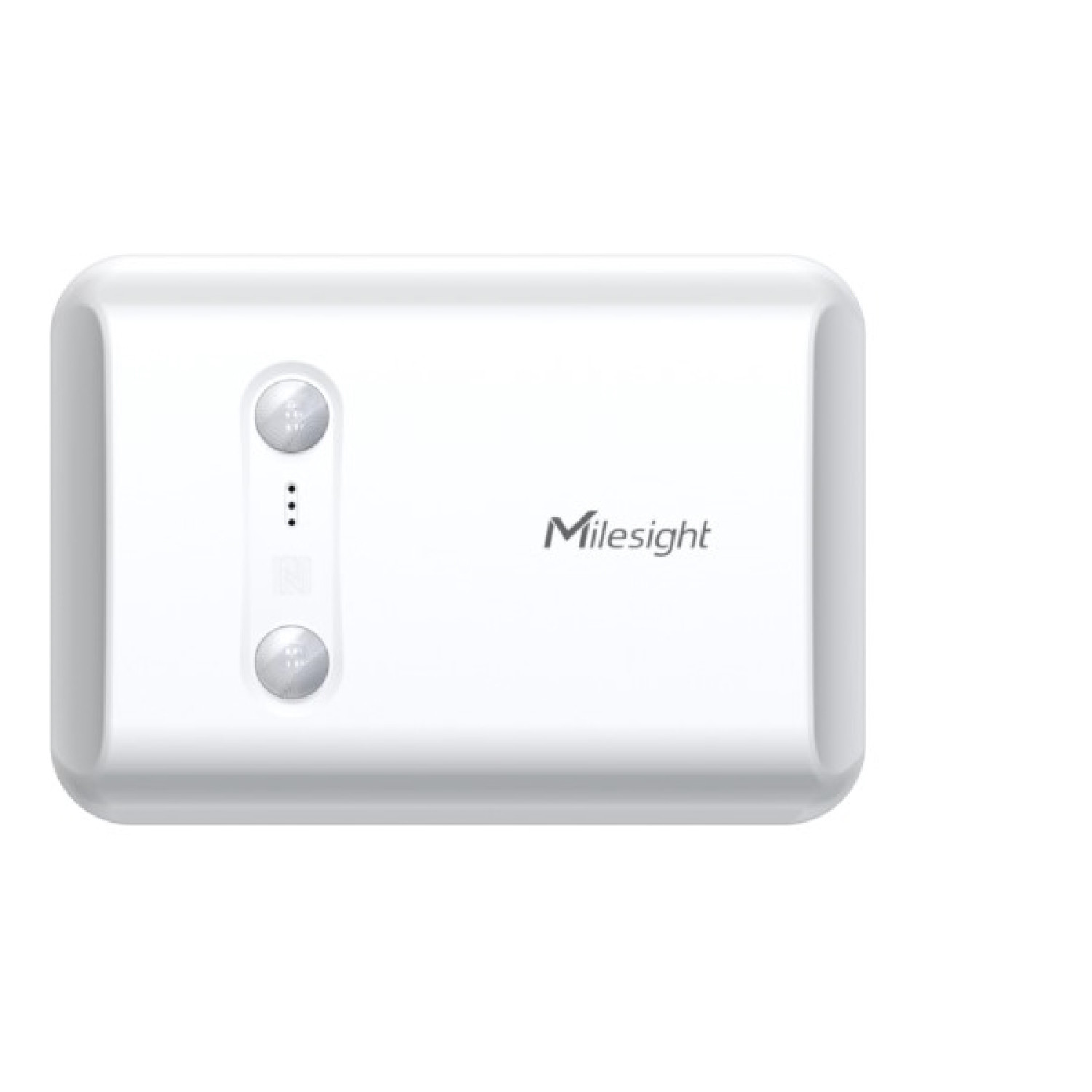

The VS350 is an exceptional indoor passage people counter that detects and analyzes the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities. AsaMilesight D2D controller, the VS350 seamlessly communicate with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations. With easy configuration and wireless detection, the facilitates deployment and connectivity. Compliant with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the number of passage people and trigger other sensors or appliances easily via a webpage or mobile App remotely.
key features:
Low Power Battery Operation: Addressing the common pain point of wiring and power supply.Up to 4 Years of battery life without replacement
People Flow Sensing Capability: Provide good accuracy rate for bi-directional people counting with dual PIR sensors
Wireless Data Transmission: Utilizing LoRa technology, the VS350 wirelessly transmits people-counting data.

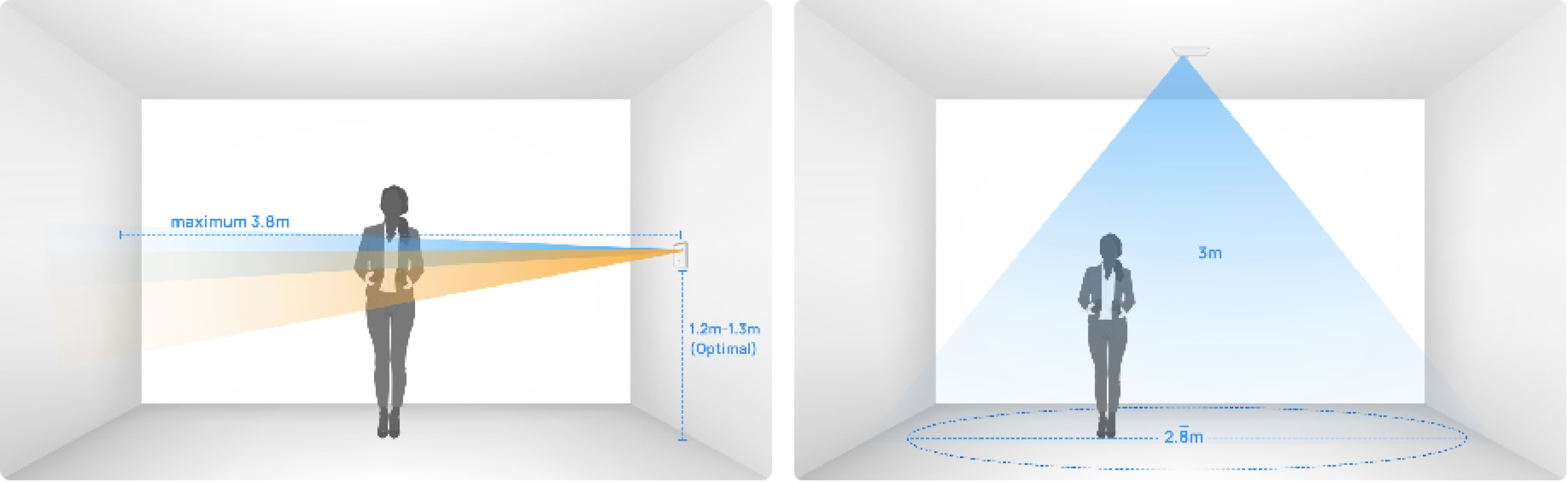

Optimal Detection Range: Wall Mount: Passage Width < 3.8 m.Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m) making it perfectly suited for your requirements.
Low Power Battery Operation with Long Battery Life: Enjoy up to 4 years of continuous operation (with a 10-minute reporting interval in CN470-SF10 setting).
Wire-free and Easy Installation: Simply fix it with screws for hassle-free deployment.
Integrated Temperature Sensor: Built-in temperature sensor, enabling environmental detection
Support Milesight D2D protocol:To enable ultra-low latency and directly control without gateways
100% Anonymous Detection: The VS350 ensures privacy by providing anonymous detection.

Technical Specifications:

• Protocol LoRaWAN , Milesight D2D
• Frequency N470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4Tx Power 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)
• Sensitivity -137dBm
• Mode OTAA/ABP Class A
• Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
• Battery Life 2 Around 4 Years (10-min Interval, 25°C, 1000 People per day )
• Operating Temperature -20°C ~ +60°C
• Relative Humidity 0% - 95% (Non-condensing)
• Ingress Protection IP30
• Dimension 100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in)
• Material & Color PC (Flame Retardant), White
• Installation Ceiling Mount

Type
Type	LoRaWAN
